Laboratory Workbench for Every Specific Need

A lab bench is essential to every laboratory, shaping ergonomics, versatility, and aesthetics more than any other piece of lab furniture. Laboratory benches play a crucial role in workflows and processes, making high quality and perfect configuration according to specific needs of each lab a must.

We manufacture laboratory workbenches known for their exceptional stability, intelligent design, and versatile applications. With a wide range of bench frames and worktops, Waldner meets all laboratory workstation requirements—from easy floor cleaning to ergonomic seating. Additionally, Waldner ensures a systematic separation of service supply and furniture for maximum flexibility.

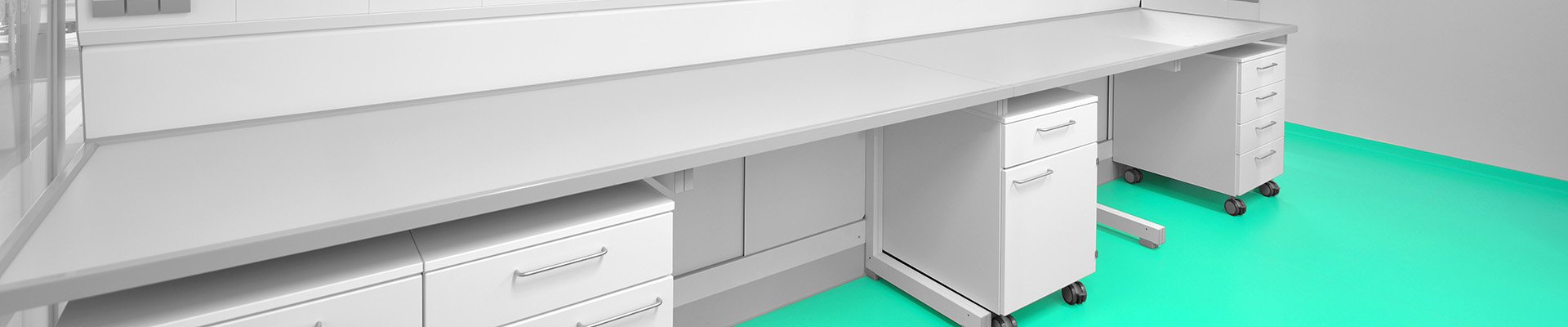

Rows of Laboratory Workbenches

Features of a Waldner Laboratory Bench

Powder coating of lab workbench frames

Waldner bench elements are built for diverse applications and offer exceptional load-bearing strength.

  • Our laboratory workbenches easily support up to 200 kg, with some models handling up to 500 kg—thanks to precision-engineered rectangular steel frames with reinforced cross-sections.
  • A durable powder-coated finish protects the frames from external influences while ensuring a seamless appearance.

Worktops and bench frames are available in a variety of materials, designs, and dimensions, making them adaptable to different applications and perfectly tailored to your workplace needs.

Your Lab Bench, Your Custom-Made Solution

Let experts from Waldner help you find the ideal lab workstation bench for your needs.

5 Possible Lab Workbench Frames

Choosing the right bench frame is just as important as selecting the ideal worktop. Waldner offers a variety of frames designed to adapt laboratory benches to your specific needs. Choose from five versions, each of which can be combined with the appropriate worktop to meet your exact requirements.

H-frames

Our H-frames are highly stable structures, making them ideal as support for work surfaces or storage areas. A key advantage of this lab bench frame is its flexibility—underbench cabinets can be added as needed, independent of grid dimensions. They provide the ideal substructure for various laboratory tasks, especially when working with heavier analytical instruments and setups.

They can be individually integrated, suspended, or repositioned laterally. Additionally, the bench frame is available in various widths, depths, and heights, allowing laboratory benches to be tailored to specific requirements.

H-frame of a lab workbench
C-frames

The C-leg allows base cabinets to be added independently of a fixed grid as required, while laboratory cabinets can be easily positioned underneath. They can be individually slid in, suspended, or flexibly shifted sideways, providing greater design freedom. C-frames are highly stable and can support up to 200 kg, making them an excellent substructure for various laboratory tasks.

Their design provides ample legroom due to the positioning of the bench legs, and laboratory cabinets can be easily placed underneath. C-frames are available in various dimensions to suit different needs.

C-frame of a lab bench
Cantilever frames

Cantilever frames are perfect for installation on a service spine or wall. Their minimalist design provides maximum legroom, making them suitable for use as both a worktop and a storage table. Underbench cabinets can be easily added, and the frame dimensions can be adjusted to match the required bench size.

Laboratory bench with cantilever frame
Load-bearing underbench units

Our load-bearing underbench units offer a dual benefit, serving as both a bench frame and a storage solution in the laboratory. This setup combines two underbench cabinets with a worktop of the customer’s choice, ensuring exceptional stability and suitability for all types of laboratory work. Both the underbench units and worktops are available in a variety of dimensions to meet specific needs.

Load-bearing underbench unit
Mobile tables

Our mobile bench frames on castors offer maximum flexibility in the laboratory. Equipped with four high-quality heavy-duty castors, two of which can be locked, they can be easily moved to the desired location and used as a storage area or work surface.

This movable support structure creates new possibilities for dynamic laboratory setups. Available in various dimensions and heights, these flexible benches can also be fitted with optional shelves and underbench units.

Mobile lab bench

9 Material Options for Waldner Lab Bench Worktops

All Waldner laboratory workbench designs can be fitted with your choice of worktop. We offer nine different materials, each with unique benefits tailored to specific laboratory applications. Most worktops are available in flat or raised-edge configurations.

Melamine resin facing

Laboratory benches with melamine resin facings offer flat, robust, and easy-to-clean surfaces with a timeless, linear appearance. Due to moisture-sensitive joints and moderate chemical resistance, they are best suited for dry areas

Note: Acids with concentrations above 10%, such as concentrated hydrochloric acid, nitric acid, and heated sulfuric acid, can irreparably damage the material.

Melamine resin facing for lab benches
Polypropylene

Seamless polypropylene worktops are ultra-flat, extremely lightweight, and highly resistant to acids, alkalis, and solvents. As a result, they are commonly used in environments where exceptional chemical resistance is essential. These worktops can also accommodate processes involving hydrofluoric acid. However, they are sensitive to heat, and their soft surface is prone to scratches.

Certain substances, such as hydrocarbons, citric acid, oxalic acid, carbon tetrachloride, and diesel oil, pose a risk to this material. Furthermore, exposure to ozone, concentrated nitric acid, chloroform, petrol, or benzene can cause irreversible damage to the polypropylene surface.

Lab bench worktop made of polypropylene
Solid (grade) laminate

Solid-grade laminate worktops feature a moisture-resistant, smooth surface, making them ideal for laboratory benches exposed to moderate wear and tear in both dry and wet environments, such as physics laboratories.

However, these worktops should not come into contact with acids exceeding a 10% concentration, as they can damage the material. In particular, concentrated hydrochloric acid, nitric acid, and heated sulfuric acid will cause irreversible damage.

Solid (grade) laminate as material for lab bench worktop
Solid (grade) laminate with an EBC surface

Solid-grade laminate worktops with a special EBC surface are ideal for use in chemical, microbiological, and genetic engineering laboratories. The electron beam-cured (EBC) surface provides antibacterial properties, moisture resistance, a flat finish, and high chemical resistance.

However, acids with concentrations above 10% can damage the material. In particular, concentrated hydrochloric acid, nitric acid, and heated sulfuric acid will cause irreversible damage.

Laboratory bench worktop made of solid (grade) laminate with EBC surface
Epoxy

Our epoxy lab bench worktop is an ultra-versatile surface designed to withstand both chemical and mechanical wear and tear. It is seamless, smooth, and highly durable, making it ideal for all types of laboratory work benches. However, its surface is sensitive to scratches and concentrated acids.

To prevent damage, avoid contact with various solvents and diluted acids. Hydrofluoric acid and concentrated, heated mineral acids can cause irreversible damage to the worktop.

Epoxy surface of lab bench worktop
Stainless steel

Their resistance to solvents, moisture, and temperature, combined with a seamless design, makes stainless-steel worktops ideal for biology, microbiology, pharmaceutical, and pathology laboratories, as well as radioisotope areas. The material's properties allow for easy decontamination, enabling a wide range of workflows and processes without compromising the worktop.

However, caution is required when using cadmium, lactic acid, and oxalic acid, as these substances can damage the surface. Additionally, keep chlorine- and bromine-containing compounds, as well as formic acid and sulfuric acid, away from stainless steel worktops.

lab bench worktop made of stainless steel
Stoneware

A stoneware worktop is ideal for laboratories in which laboratory benches are exposed to the most severe chemical and mechanical conditions. The surface is extremely robust and resistant to a wide range of chemical substances. Stoneware worktops can only be damaged by hydrofluoric acid.

Slight unevenness on the surface can be caused by the firing process during production of the worktop. These worktops also have limited robustness when exposed to thermodynamic stress.



Laboratory workbench stoneware worktop
Stoneware-composite worktop

Stoneware-composite worktops also perfectly withstand chemical and mechanical wear and tear. They are also resistant to chemicals (with the exception of hydrofluoric acid) and have the added advantage of an extremely flat surface. As a result, these laboratory work benches are extremely versatile. Nonetheless, these worktops have only limited capacity to withstand thermodynamic loading.

Stoneware-composite worktop
Glass

Glass is a smooth material capable of withstanding the most severe exposure to chemicals. It is therefore suitable for all versions of laboratory benches that are exposed to a wide range of chemicals. The surface can only be irreparably damaged by hydrofluoric acid. The nature of the material also makes the corners and edges of the worktop sensitive to impacts.

Lab bench worktop made of glass

Curious?

Let’s work together to develop the perfect, tailor-made solution for your laboratory with Waldner. Contact us today!

5 Special Laboratory Benches for Specific Requirements

Conventional laboratory workbenches often cannot meet all the unique demands of specialist laboratories. That’s why Waldner has developed five specialized lab workbenches to maximize efficiency, flexibility, and safety in your laboratory.

Balance tables

Our balance tables feature a specially mounted, vibration-free fine concrete balance plate to ensure highly precise measurements. This plate is integrated into a variable worktop, which is then mounted on a sturdy, vibration-decoupled steel support structure and finished with an appropriate bench cover. Waldner balance tables are ideal for analytical balances and other sensitive measuring equipment.

Balance table for precise measurements on lab benches
Heavy duty racks

Our heavy-duty racks offer a mobile, multi-level storage solution for your laboratory. Designed to support extremely heavy loads, this specialized table has a load-bearing capacity of up to 500 kg, making it ideal for heavy equipment.

The support surfaces can be customized and adjusted to meet specific needs. Equipped with heavy-duty castors, two of which can be locked, these racks can be easily moved as required.

Heavy duty racks are specialised lab benches for heavy equipment
Heavy duty mobile table

This mobile heavy-duty table frame with a worktop has a total load-bearing capacity of 500 kg. Designed for flexibility, it allows heavy experiment setups and equipment to be easily positioned and moved within the laboratory.

The top shelf height is adjustable for maximum adaptability, while an integrated sliding handle ensures smooth maneuverability. Lockable heavy-duty castors provide secure positioning. The heavy-duty mobile table is available in a range of sizes to suit different needs.

Heavy-duty mobile lab bench
Height-adjustable laboratory bench

Ergonomics is becoming increasingly important in laboratories to ensure staff can work efficiently and comfortably. Our height-adjustable laboratory benches support this need by allowing the worktop and storage surface to be adjusted in 25 mm increments, up to a maximum height of 95 cm. This enables each employee to find their ideal ergonomic working height. A sturdy steel H-frame ensures stability and secure positioning.

Height-adjustable table as an ergonomic laboratory bench
Sliding elements

Sliding elements are all fixed to 4 wheels in a sliding rail, which is located on the laboratory work bench

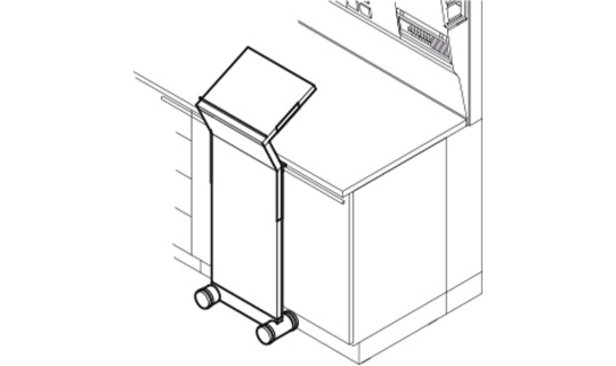

Secretary

Secretary

Moveable angled writing surface

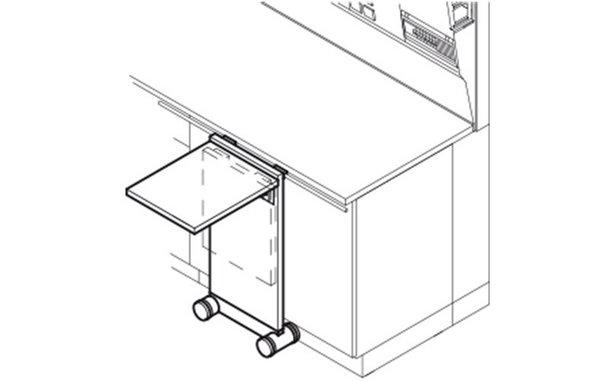

Assistent

Assistent

Fold-out storage and writing surface that can be moved on the laboratory bench

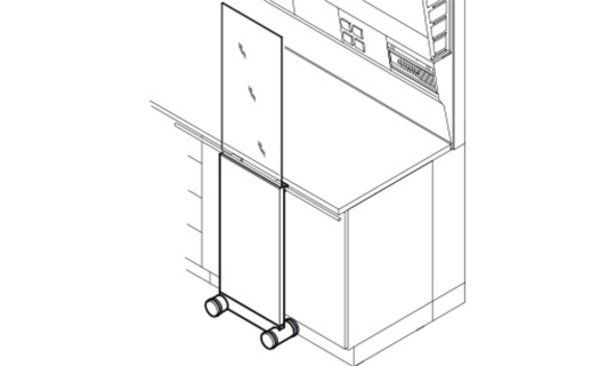

Protector

Protector

Moveable spray and splinter guard with safety glass

Lab Bench from Waldner: Ultimate Quality

When you choose a Waldner lab bench, you are investing in a high-quality product that meets the highest safety standards and is built for long-lasting performance.

From a classic lab workstation bench and movable table elements to height-adjustable models, every product is crafted from durable materials with exceptional precision and tailored to your exact requirements. This allows us to provide customized laboratory furniture that meets the specific needs of laboratories across all sectors.
