Laboratory cabinets – secure storage space in laboratories

You need storage space in laboratories to store equipment, samples and chemicals. Special laboratory cabinets are ideal for this as they are designed to fulfil very specific requirements in laboratories. They enhance safety, ensure the organisation required in everyday laboratory life, and often even have to withstand hazardous materials.

But no two laboratory cabinets are alike! There are many different requirements governing storage space in laboratories. We therefore produce the widest possible range of cabinet solutions to meet customers' specific needs. Whether you need a laboratory underbench cabinet, top-mounted cabinet, mobile storage container or safety cabinet – you are guaranteed to find the perfect model for your laboratory from our extensive product range.

What sets Waldner laboratory cabinets apart?

Laborschrank von Waldner

Our SCALA laboratory furniture system delivers includes a wide selection of different types of storage space to guarantee ease of access and safe and secure storage. All laboratory cabinets can be variably equipped and permit optimum use of space in all areas of the laboratory. The cabinets can be extended, retrofitted and are compatible – and so can be adapted to new requirements in the shortest possible time.

The melamine resin-coated surfaces are easy to care for and durable, and the front edges of the carcass and shelves also feature impact-resistant polypropylene edging. Waldner special cabinets handle the safe storage of solvents, acids, alkalis and compressed gas bottles, and can also be used for chemical disposal. Waldner also suppliers solid (grade) laminate laboratory cabinets for special requirements.

First-class materials guarantee durability

We pay particular attention to durability with our laboratory cabinets. Hinges, pull-out rails and surfaces need to withstand thousands of load changes.

Underbench units: space-saving laboratory cabinets

Underbench units are the answer when you need to maximise the available space in laboratories. They can simply be positioned underneath a laboratory bench. But laboratory underbench cabinets also work well as stand-alone elements.

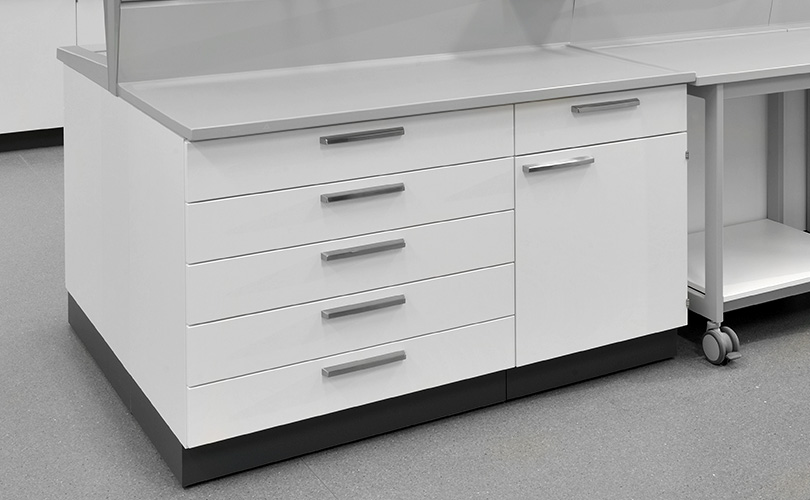

Laboratory underbench cabinets on a plinth

Waldner's classic laboratory cabinets are its laboratory underbench cabinets on a plinth – a permanent solution for the storage of equipment and chemicals in compliance with DIN EN 16121 and DIN EN 16122. These laboratory cabinets have an underbench depth of 550 or 650 mm.

  • Working height: 750 or 900 mm
  • Width: 450 to 1200 mm
  • Single doors, double doors, drawers, full-height drawers or a combination of these elements
  • Four height-adjustable feet
  • Fitted as standard: Fully extendible drawer, concealed castor guide and soft stop for the drawers
  • Optionally available with extract air connection
  • Not suitable for the storage of acids, alkalis, flammable liquids, self-igniting or self-decomposing substances, and compressed gas bottles
Substructure on plinth

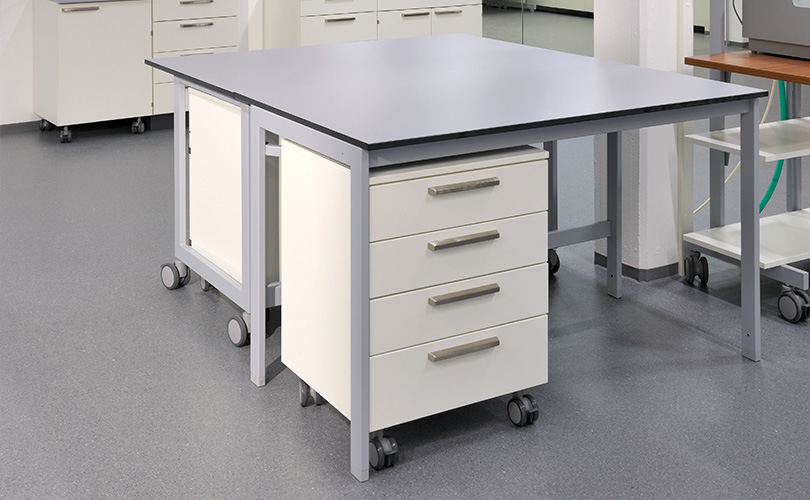

Laboratory underbench cabinets on castors

Waldner's stable, topple-proof laboratory underbench cabinet on castors is ideal for the mobile storage of equipment and chemicals in compliance with DIN EN 16121 and DIN EN 16122. It fits perfectly under Waldner laboratory benches and is versatile to use – wherever you need it. It makes our mobile laboratory storage containers into veritable multi-purpose units.

  • Working height: 750 or 900 mm
  • Width: 450 to 1200 mm
  • Single doors, double doors, drawers or a combination of these elements
  • Four smooth-running castors, two of which can be locked
  • Fitted as standard: Fully extendible drawers and change-pull-out catch, height-adjustable bases and soft stop
  • Not suitable for the storage of flammable liquids, compressed gas bottles, self-igniting or self-decomposing substances, acids and alkalis
Substructure on rollers

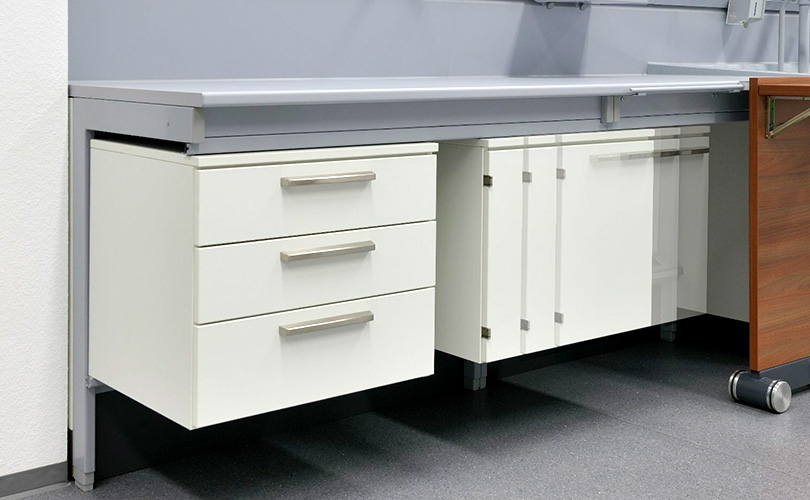

Suspended laboratory underbench cabinets

Our portfolio also includes underbench units that can be suspended within the bench frame. These underbench tables can be inserted within the grid with H-frame benches, and positioned as required with C-frame and cantilever frame benches. They offer maximum flexibility for the storage of equipment and chemicals in compliance with DIN EN 16121 and DIN EN 16122.

  • Working height: 750 or 900 mm
  • Width: 450 to 1200 mm
  • Single doors, double doors, drawers or a combination of these elements
  • Fitted as standard: Fully extendible drawers, soft stop, height-adjustable bases and fittings to suspend on the profile rail
  • Not suitable for the storage of acids, alkalis, flammable liquids, compressed gas bottles, self-igniting or self-decomposing substances
Suspended substructure

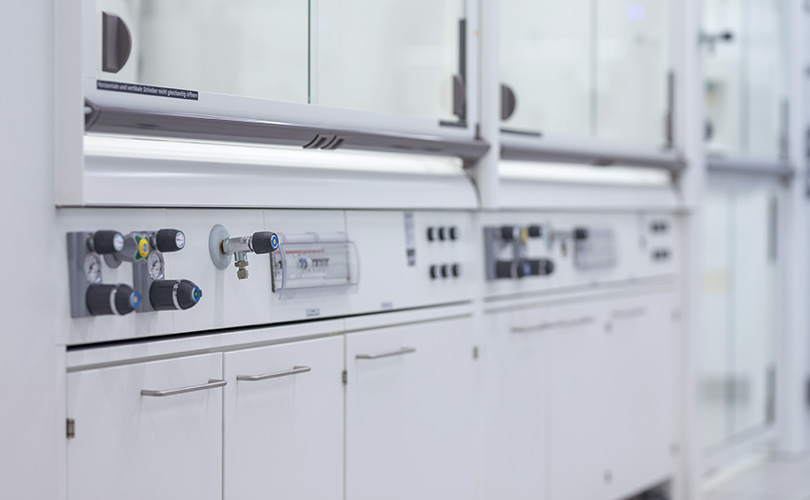

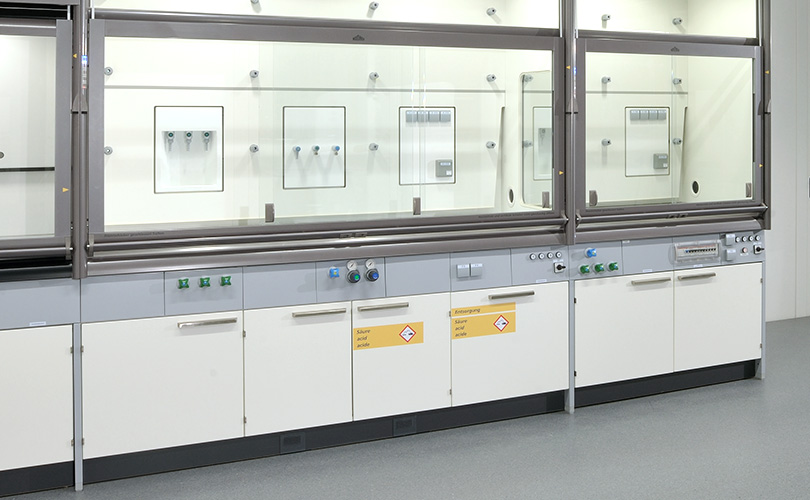

Underbench cabinets for fume hoods

These push-in underbench units are specially designed laboratory cabinets that can be positioned under fume hoods with a steel support frame. They are ideal for the storage of equipment and chemicals in compliance with DIN EN 16121 and DIN EN 16122.

  • Height: 640 or 716 mm – depending on the model
  • Width: 545 to 1200 mm
  • Hinged doors with 270° hinges, drawers, full-height drawers or a combination of these elements
  • Compatible with fume hoods with rear wall or side installation on a steel support frame
  • Four height-adjustable feet
  • Optionally available with extract air connection
  • Not approved for the storage of flammable liquids, acids, alkalis, compressed gas bottles and self-igniting or self-decomposing substances
Sliding base for fume hoods

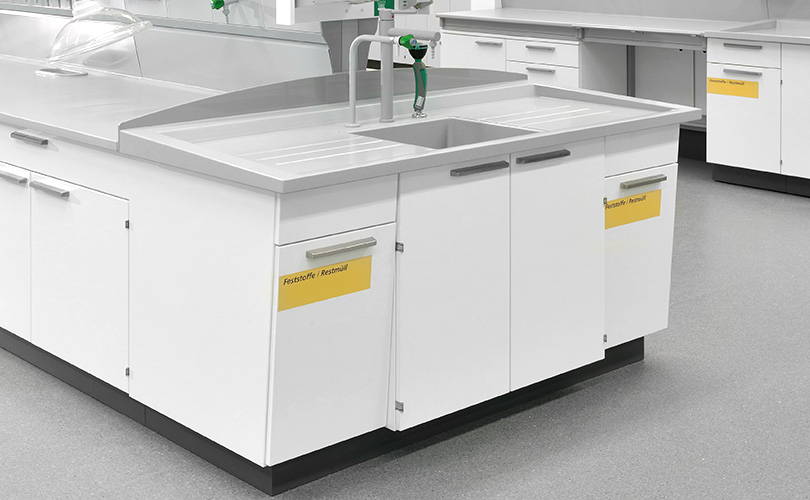

Underbench cabinets for sinks

This special underbench cabinet is ideal as an underbench unit for laboratory sinks. Choose from a sink with underbench unit for a service spine or in front or a wall, or a front end sink for double-sided work benches. Both versions are ideal for the storage of equipment and chemicals in compliance with DIN EN 16121 and DIN EN 16122.

  • Width: 600 to 1720 mm (depending on the model)
  • Height: 870 mm
  • Four height-adjustable feet
  • Fitted as standard: Waste bins with full-height drawer, swivel door with tilting waste bin and hinged doors
  • Not suitable for the storage of acids, alkalis, compressed gas bottles, flammable liquids and self-igniting or self-decomposing substances
Substructure for sinks

High laboratory cabinets for even more storage space

Laboratory underbench cabinets are not the only units available to provide even more storage space in laboratories. High laboratory cabinets or suspended cabinet elements are ideal for the storage of equipment.

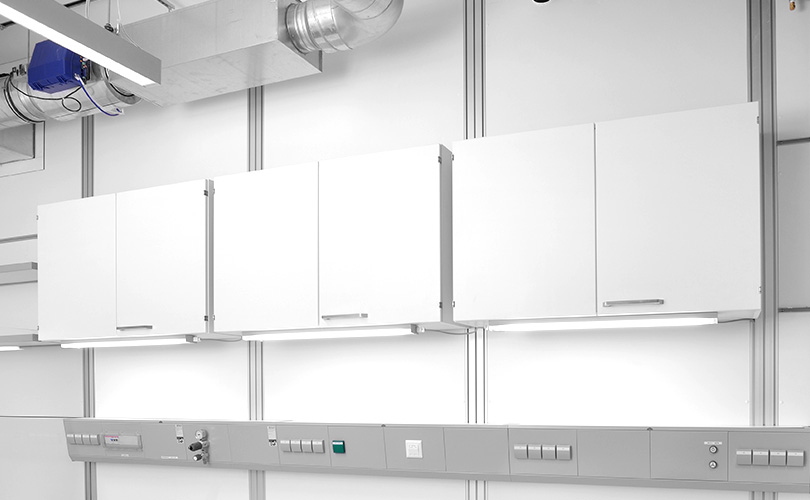

Suspended cabinets

Waldner laboratory suspended cabinets are ideal for making optimum use of the available space in laboratories. They are fastened to the service spine or wall without a visible gap and can be used to store a range of chemicals, equipment and accessories in compliance with DIN EN 16121 and DIN EN 16122.

  • Width: 450 to 1200 mm
  • Height: 460 or 760 mm
  • Optionally available with hinged or sliding glass doors
  • Not approved for the storage of flammable liquids, compressed gas bottles, self-igniting or self-decomposing substances, acids and alkalis
Wall units

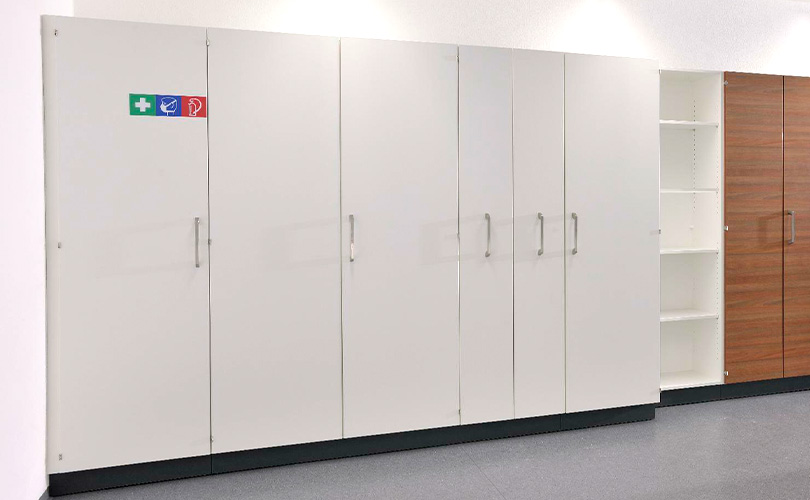

Tall cabinets

Waldner's traditional laboratory cabinets with an overall height of 2090 mm are an excellent option for operators who require a lot of storage space in their laboratory. They offer plenty of space for anything that is regularly needed or that you want to store there (in compliance with EN DIN 16121 and DIN EN 16122). Make the most of diverse options to perfectly adapt this model to your needs.

  • Width: 450 to 120 mm
  • Depth: 350 or 550 mm
  • Hinged doors or drawers
  • Optional: Extract air connection, extendible shelves (with 550 mm cabinet depth) and fully extendible drawers (with 550 mm cabinet depth)
  • Not approved for the storage of acids, alkalis, flammable liquids, compressed gas bottles, self-igniting or self-decomposing substances
Tall cabinet

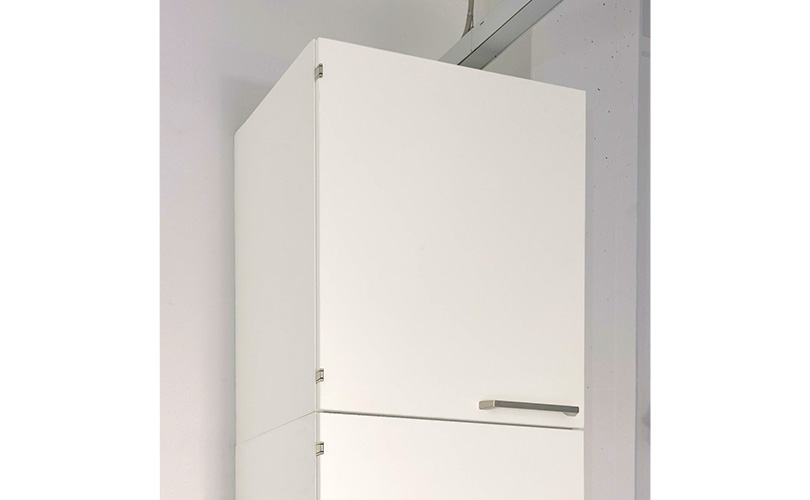

Top-mounted cabinets

Fitted as permanent cabinets on existing tall cabinets, pull-out cabinets, emergency cabinets or acid and alkali cabinets, Waldner top-mounted cabinets provide additional storage space in laboratories (in compliance with DIN EN 16121 and DIN EN 16122). These laboratory cabinets feature a rail for the secure suspension of ladders so that higher cabinets can be reached safely.

  • Width: 450 to 1200 mm
  • Height: 610 or 760 mm
  • Depth: 350 or 550 mm
  • Featuring hinged doors and height-adjustable shelf
  • Not approved for the storage of acids, alkalis, flammable liquids, compressed gas bottles, self-igniting or self-decomposing substances
Top mounted cabinet

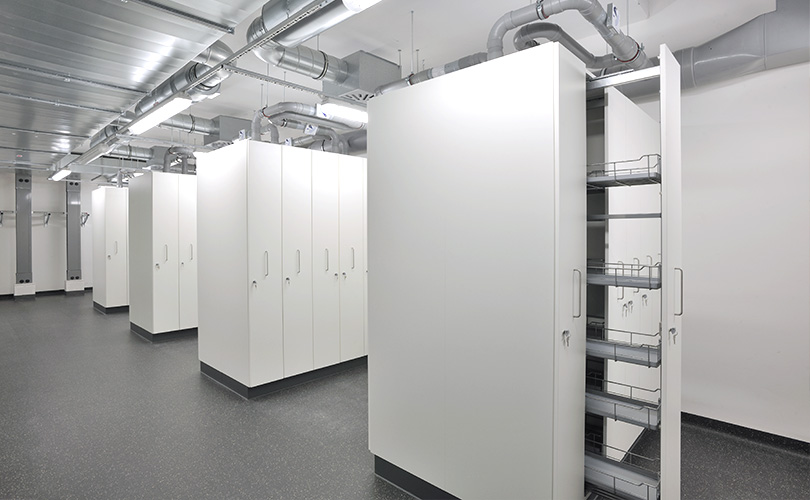

Pull-out cabinets

Waldner's pull-out cabinets (also colloquially known as pharmacy cabinets) are ultra-space-saving. You can store liquid and solid substances in pull-out wire baskets with collection trays in compliance with DIN EN 16121 and DIN EN 16122.

  • Width: 600 or 900 mm
  • Height: 2090 mm
  • Depth: 550 mm
  • Drawers: height-adjustable, each with five trays, accessible from both sides
  • Four height-adjustable feet
  • Optionally available with extract air connection
  • Not approved for the storage of acids, alkalis, flammable liquids, compressed gas bottles, self-igniting or self-decomposing substances
Pull-out unit

Curious?

Let us find out together how Waldner can develop an optimum and unique solution for your laboratory.

For special requirements – our special cabinets

The designs of Waldner's lockable safety cabinets for gases, acids, alkalis and flammable liquids comply with the most exacting material properties and functionality. Naturally, they all conform to the latest standards. The following models are available:

These special cabinets are suitable for the storage of acids and alkalis and comply with DIN EN 16121 and DIN EN 16122. These laboratory cabinets feature separate compartments for acids and alkalis and a connection to a permanently active ventilation system. The height-adjustable feet ensure that the cabinets are very stable, while the four variable shelves enable it to be equipped as required.

Designed as a push-in underbench unit for laboratory fume hoods, this safety cabinet is suitable for the storage of acids and alkalis. It features a connection to a permanently active ventilation system and has extendible shelves for ease of use.

Waldner's FWF 90 safety cabinets, which comply with DIN EN 14470-1 and TRGS 510, are suitable for the storage of flammable liquids. These laboratory cabinets protect the contents of the cabinet for 90 minutes in the event of a fire and are connected to a permanently active ventilation system and an earth line with potential equalisation. Thermal activation, independent of the power supply, also automatically closes the cabinets in the event of a fire.

Waldner FWF 90 safety cabinets are suitable for the storage of flammable liquids (in compliance with DIN EN  14470-1 and TRGS 510). These safety cabinets are installed under a bench-mounted fume hood and are connected to a permanently active ventilation system and an earth line with potential equalisation. A unique feature of these safety cabinets is that they are automatically locked in the event of a fire by thermal activation independent of the power supply.

Waldner G90 safety cabinets provide a safe and secure storage place for up to four compressed gas bottles (in compliance with DIN EN 14470-2), in which the gas bottles are protected for 90 minutes in the event of a fire. They are impressive by being connected to a permanently active ventilation system. The cabinets come as standard with a mounting rail to accommodate pressurised gas reduction stations, separate bottle holders including lashing straps, and a roll-in ramp.

Waldner's emergency cabinets were designed for the storage of emergency and rescue materials. They feature a first aid case, fire extinguisher, sand box, sand shovels and fire blankets, and provide space for additional first aid material or other accessories. These laboratory cabinets are not suitable for the storage of acids, alkalis or flammable materials.

Laboratory cabinets – tailor-made for your laboratory

All Waldner laboratory cabinets cannot fail to impress with their well thought-out design, functional construction and are manufactured to the trusted Waldner quality customers have come to expect. They offer space-saving solutions for laboratories to introduce greater order, organisation, structure and safety to everyday working life.

Customisation options play a key role in ensuring that laboratory cabinets can also be used truly efficiently. Waldner products always come in a range of different versions in terms of construction, functionality, compatibility and appearance. This means that the laboratory cabinets can be adapted precisely to meet your requirements and perfectly complement your laboratory furniture.

Labor-Unterbauschrank mit Eichendekor
